A boardroom wall and a retail feature may have similar dimensions, yet they place very different demands on an LED display screen. An indoor direct-view system assembles light-emitting modules into a canvas sized for a command center, meeting room, exhibition hall, or other commercial interior without introducing LCD-style bezels.
Selection begins with the room, not with a product label. Viewing distance, ambient light, content detail, operating hours, service access, and wall dimensions determine whether a conventional SMD panel, a fine-pitch configuration, or a protected COB surface is the more appropriate starting point.
Indoor Display Categories and Their Practical Roles
For indoor environments, an indoor LED display screen may use SMD, COB, or a proprietary PSE technology route. SMD panels place packaged LEDs on the surface of a circuit board and cover a broad pitch range. Their established cabinet structure suits advertising, events, broadcast spaces, and installations where proven modular flexibility matters.
Fine-pitch displays reduce the distance between neighboring pixels. A smaller pitch increases pixel density within the same physical area, allowing detailed dashboards, presentation text, and close-viewed video to appear more coherent. That advantage also raises the number of pixels, modules, processing capacity, and installation precision required.
COB construction places and protects chips at board level, creating a robust display surface with strong black consistency and close-pitch capability. It is particularly relevant where viewers stand near the wall or where repeated contact, cleaning, collision resistance, and long operating schedules influence the specification.

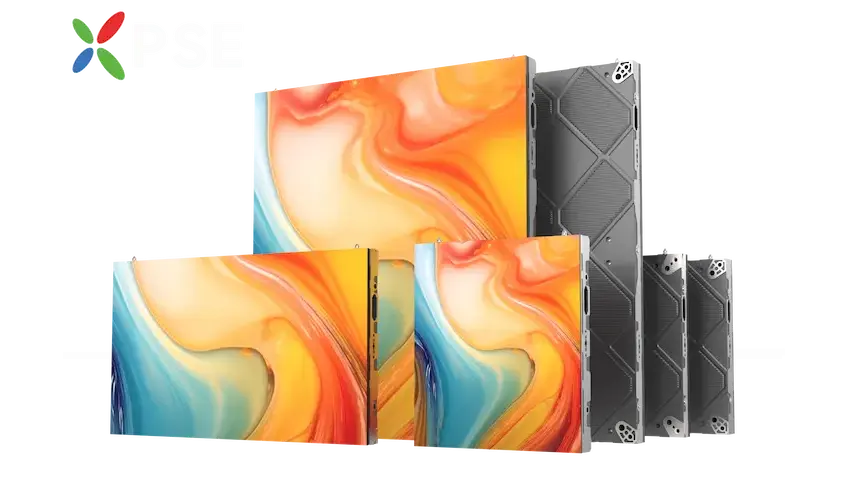

PSE-based products add another route to fine-pitch indoor presentation. Their emphasis is ultra-high-definition imaging with lower power demand and controlled surface temperature. This combination may be useful in command centers and meeting spaces where occupants work close to a large wall for extended periods.
A category decision also affects the control architecture. Fine-pitch walls carrying dashboards or live camera feeds require processors that preserve native detail, map the assembled canvas accurately, and maintain stable synchronization. The signal path, source resolution, scaling rules, backup behavior, and handover documentation belong in the indoor display specification alongside the visible modules.
Matching Pixel Pitch and Cabinet Design to the Room
The first measurable decision is viewing distance. A retail feature wall viewed from across a concourse may tolerate a wider pitch than a control-room wall displaying small labels. Screen width and height must then be translated into horizontal and vertical pixel totals before resolution is judged.
Cabinet engineering affects the finished image as much as the module specification. Die-cast aluminum improves flatness and alignment, while front-service access may reduce the depth required behind a wall. Safety buckles, anti-knock details, parallel module circuits, and fanless heat dissipation address maintenance and reliability in different ways.
Ledman illustrates the range through several indoor families. K Series uses SMD technology with 1.5–3.2 mm pitch, 800-nit brightness, 3840 Hz refresh rate, 14-bit grayscale, a 16:9 die-cast cabinet, and right-angle splicing. KCⅡ Series spans 1.2–2.5 mm and adds anti-knock protection and natural heat dissipation.
DS Series offers 0.7 and 1.2 mm pixel pitches and combines COB technology with Ledman’s proprietary PSE technology. Its design combines HDR support, high contrast, stable black presentation, heat management, and lower power consumption. Those specifications align with command centers, conferences, exhibitions, and indoor advertising where close viewing and image consistency carry greater weight.
Maintenance planning benefits from a drawing that marks every removable module, power unit, receiving card, cable route, and controller. Front access suits walls with no rear corridor, while rear service may simplify work on deeper structures. Spare modules from the same production batch also help technicians restore a consistent image after replacement.
Turning Room Conditions into a Complete Specification
A buyer needs to compare complete configurations rather than isolated pitch numbers. Native resolution, refresh rate, grayscale, brightness, cabinet material, service direction, controller capacity, mounting structure, heat behavior, protection features, warranty, and commissioning support all affect the usable result.
Content also changes the answer. Large-format motion graphics may remain effective at a wider pitch, whereas spreadsheets, maps, captions, and camera feeds demand finer detail. A live financial dashboard or high-resolution map viewed from the nearest planned position shows whether labels, thin lines, and color-coded details remain legible on the proposed wall.
A complete LED display screen is therefore a coordinated system rather than merely a panel. Signal processing, power distribution, calibration, structural alignment, and maintenance access must work together if uniform color and uninterrupted operation are expected across the assembled wall.
The Ledman portfolio shows why the practical choice extends beyond SMD versus COB. Procurement teams then compare defined pitch ranges, cabinet formats, protective structures, thermal approaches, and application requirements. A well-matched indoor LED display screen follows from those room-specific facts rather than from selecting the smallest pitch available. That specification discipline also gives procurement, design, installation, and operations teams a shared basis for comparing proposals and accepting the completed system.
Business value comes from matching the wall to the task. A command center prioritizes detailed information and continuity; a lobby favors scale and brand impact; a broadcast set emphasizes refresh performance and camera behavior; an exhibition space may value flexible dimensions. Those operating differences explain why one indoor category rarely serves every project equally well.
