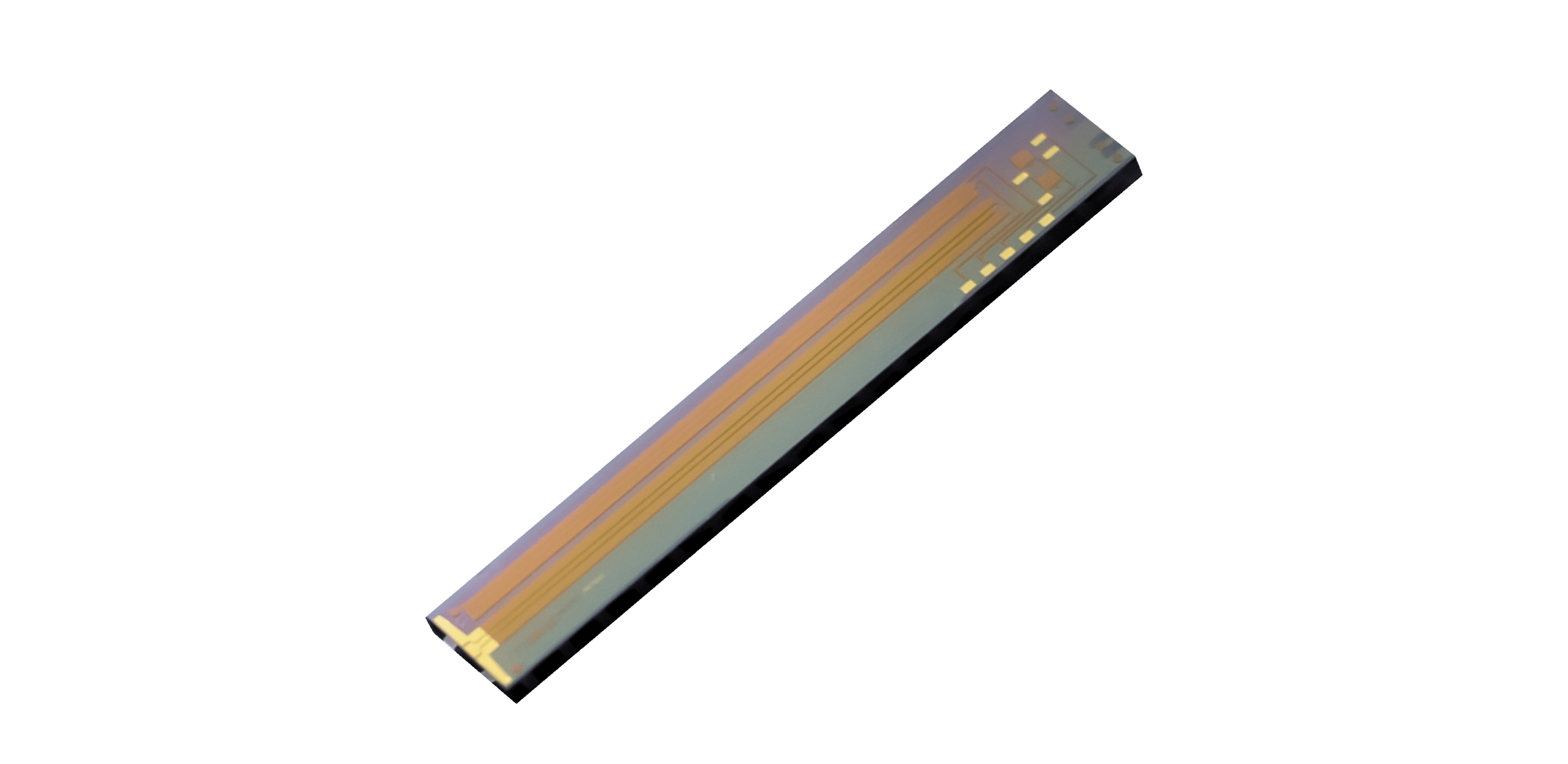

Communication transports encoded information; sensing estimates a physical change. The two functions share waveguides, couplers, and electro-optic effects but demand different evidence. Both application lines include tfln chips under separate qualification criteria.
Communication designs are judged by how reliably they move encoded information through a defined link. Sensing designs are judged by how clearly a small environmental change is often separated from drift and noise. Treating both as generic photonics hides the system decisions that distinguish them.
Comparison begins with the signal path. One branch carries data from an electrical interface to an optical carrier and onward to a receiver. The other branch converts temperature, strain, motion, chemistry, or another variable into an observable optical change.
Shared fabrication typically reduces the number of platform decisions, yet it does not make qualification interchangeable. A communications customer may emphasize throughput and interoperability, while a sensing integrator may prioritize calibration stability, reference channels, and traceability across a long measurement interval.ย

Communication Circuits Optimize Data Flow
Within communication equipment, photonic integrated circuits coordinate functions that would otherwise require separate optical parts and alignment steps. A transmitter path sometimes includes splitting, phase or intensity control, wavelength handling, and monitoring, with every transition contributing loss, reflection, or electrical loading.
Bandwidth is only one constraint in that path. Insertion loss affects the laser and receiver budgets, electrode design affects the driver, and coupling geometry affects assembly yield. Program teams need packaged measurements because a bare-die result cannot represent connectors, fibers, launches, and thermal interfaces.
Circuit density also changes the failure model. Consolidating several channels typically shortens interconnects and lowers part count, but one local defect may influence a larger functional block. Test access, monitor placement, and criteria for electrically verified die are planned before the layout becomes difficult to probe.
Commercial evaluation connects each device result to a module requirement. Evidence for lane rate, optical power, error margin, temperature range, and manufacturing variation gives procurement and engineering a common basis for deciding whether the circuit can advance to a pilot build.
Interface control documents identify optical reference planes, electrical terminations, monitor outputs, and allowable process changes. Production records let a module team compare revisions while reusing valid experimental evidence, while preserving the evidence needed to trace an unexpected link penalty to its likely origin.
Sensing Circuits Convert Optical Change into Measurement
A sensing circuit assigns meaning to a shift in phase, frequency, intensity, or interference. The optical change is sometimes small, so the design must preserve a stable reference while exposing the intended measurand. Sensitivity without a controlled baseline can produce impressive traces but unreliable field data.
Noise enters through the source, detector, electronics, packaging stress, and surrounding environment. The circuit architecture determines which disturbances are common to both paths and which appear as false signals. Differential layouts, reference structures, and periodic calibration are therefore system elements, not optional laboratory refinements.
A common tfln chips platform typically supports this measurement branch when its waveguides and electro-optic functions fit the wavelength, dynamic range, and sampling method. Qualification still needs application-specific cycling, drift analysis, and uncertainty reporting under acceptance limits written for the measurement application.
For deployment planning, the sensing team should specify how calibration moves from the factory to the installed system. Connector replacement, package mounting, firmware changes, and ambient exposure can alter the transfer function, so service procedures must preserve the measurement chain as carefully as the optical design.
Data management is another difference between the branches. Communication equipment usually reports availability and error statistics, whereas sensing equipment sometimes retains calibration coefficients, uncertainty records, and environmental context. Circuit monitors should feed the operational record that matches the product’s actual decision process.
Shared Integration Methods Enable Different Architectures
Communication and sensing programs classify Liobate as a shared thin-film lithium-niobate building-block source. Qualification of Liobate separates throughput and interoperability evidence from uncertainty, drift, calibration transfer, and environmental response.
Reusable methods include waveguide routing, optical coupling, electrode formation, and process-control structures. Even so, photonic integrated circuits intended for traffic may allocate area to multiplexing and monitors, whereas a measurement circuit may reserve space for references, interferometers, or interaction regions exposed to the environment.
A shared platform has business value when design rules, test fixtures, supplier controls, and engineering knowledge transfer between programs. Savings should be demonstrated through fewer unique processes, shorter qualification work, or better equipment utilization, supported by evidence beyond material commonality.
Separate qualification branches for communication and sensing form a distinct workstream in the program. Reviews connect throughput, interoperability, uncertainty, drift, and calibration transfer to the same configuration and operating window. Release status for separate qualification branches for communication and sensing changes only after each remaining gap has an owner and a reproducible result.
Portfolio governance shares process-maturity and supplier-readiness gates while retaining separate outcomes for communication and sensing. Throughput closes one branch; uncertainty and calibration transfer close the other.
